Wind Control Panel – Digital (WCP-D)

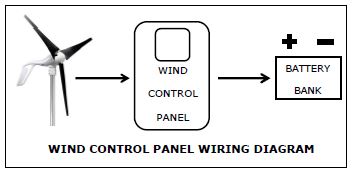

AIR Wind Poweris pleased tooffer adigital windcontrol panelfor use with all AIR Wind Turbines (see chart below)The panelis easy to install and will result in a professional operator station enhancing thebeauty and value of the Hybrid system installation.WCPD includes a full indoor only,black plastic enclosureDimensions are: 6.5 inch / W 4.25 inch/ D 2.5 inchesThe WCP Dhelps to reduce installation costs and makes wiring a snap with just 4 wires to connect. The panel isavailable in5 models specific to the AIR Wind Turbine voltage and type.

The control monitors the wind turbine. It is equipped with a power On/Off circuit breaker, digital meterand a Stop/Run switch (for direct control of the turbine). The digital meter (equipped with a 50 amp shunt) provides critical operational information; real time battery voltage, current in amps, power in Watts and accumulated energy in W/hours(re-settable). A clearly marked rear terminal block, The WCP terminal blocks, whichwill accept an 8 AWG or smaller wire size, providesfor easy interconnect of the two turbine wires and two battery power wires.If a larger gauge wire is required, use a few inches of 8 AWG wire to transition to theterminal blocks. Panel is fully factory calibrated and ready for installation.
