Air 40 Turbine
AIR® 40 Wind Turbine
The Proven Choice For Remote Energy

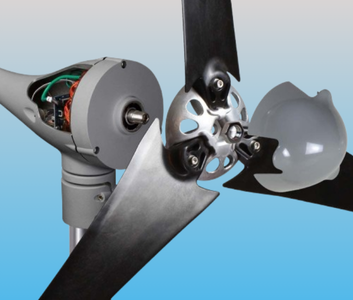

AIR 40 is the premier micro-wind turbine for land-based applications. It operates efficiently low to moderate wind speeds, providing energy for telecom, water pumping, lighting, SCADA, off-grid homes, or other low energy demand battery charging applications. The AIR 40 is ideal for pairing with solar to offset seasonal variation, delivering more consistent energy.
The all-new AIR 40 wind turbine. Quieter, more efficient, and precision-engineered to deliver more energy at lower wind speeds than any other wind generator in its class. AIR 40 is the next
generation of AIR turbines with more than 180,000 units sold globally, the world’s most popular small wind turbine.
The AIR 40 uses a new microprocessor-based technology that results in an increase in performance, battery charging capability, and reliability. Additionally, the “flutter” noise from the machine has been reduced.
The controller allows for peak-power tracking of the wind by optimizing the alternator’s output on all points of the cubic curve and efficiently delivers the energy to the battery. The turbine’s smart controller allows it to actually control blade rotation speed thus eliminating the buzzing noise commonly found with most small wind turbines.
- Advanced microprocessor technology for superior performance
- Blades designed for quieter operation, durability and optimum energy capture in most wind speeds.
- Pair with solar PV for redundant energy production year-round
- Lightweight design is simple and easy-to-install; integrated controller for plug-and-play operation
- Produces 40 kWh of energy per month on average speed @ 5.5m/s / 12 mph wind speeds, dependant on site conditions
DESCRIPTION
AIR 40 wind turbine: Quieter, more efficient, and precision-engineered to deliver more energy at lower wind speeds than any other wind generator in its class.
AIR 40 is the next generation of AIR turbines! The AIR 40 uses a new microprocessor-based technology that results in an increase in performance in low to moderate winds, battery charging capability, and reliability- making it the world’s most popular small wind turbine .
The controller allows for peak-power tracking of the wind by optimizing the alternator’s output on all points of the cubic curve and efficiently delivers the energy to the battery. The turbine’s smart controller allows it to control blade rotation speed thus eliminating the buzzing noise commonly found with most small wind turbines.
AIR 40 is part of the latest generation of AIR products—the world’s best-selling wind turbines—with more than 180,000 units sold globally.
Data Sheet
| Value | Specification |
|---|---|
| Energy | Approx. 40 kWh/mo at 5.5 m/s (12 mph) |
| Swept Area | 1.07 m2 (11.5 ft2) |
| Rotor Diameter | 1.17 m (46 in) |
| Weight | 5.9 kg (13 lb) |
| Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed | 3.1 m/s (7 mph) |
| Voltage | 12, 24, and 48 VDC |
| Turbine Controller | Microprocessor-based smart controller |
| Body | basic finish-grey |
| Blades | (3) Injection-molded composite-black |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 40.2 m/s (90 mph) |
| Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Turbine Specifications

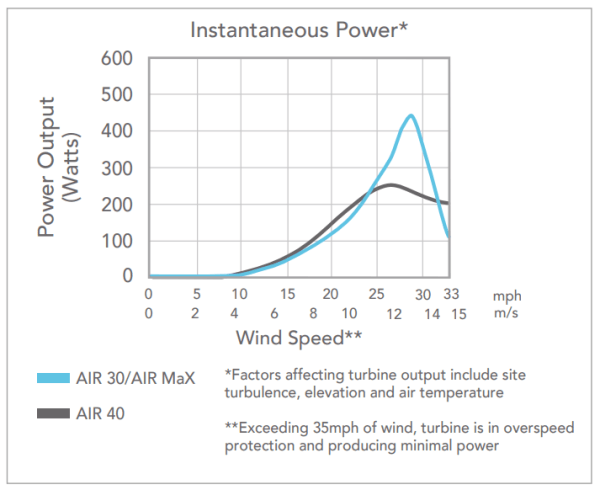

AIR® WIND POWER CURVE

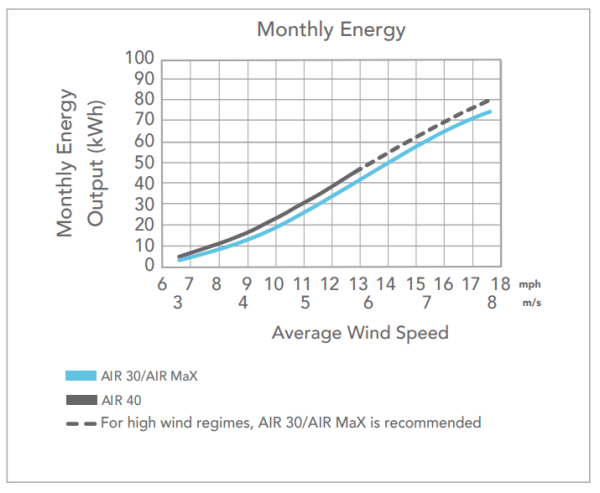

AIR® ENERGY CURVE

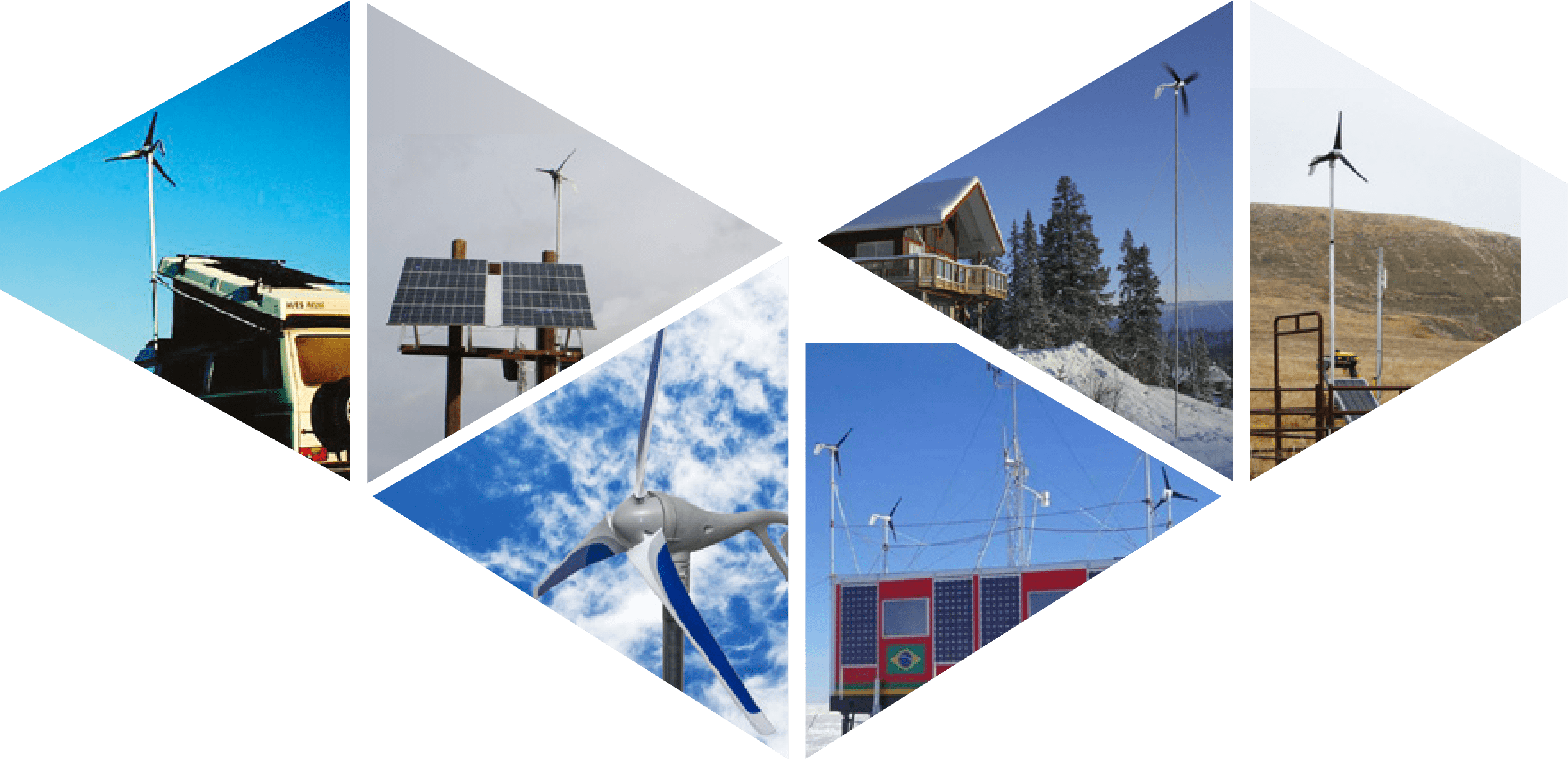

Gallery
