AIR® Silent X
The proven choice for the Marine Leisure market
When you need energy in marine environments, our AIR Silent X delivers.
It’s hands down the best energy choice for Off-Grid marine-based applications in high-wind environments. Use it for marine sailing vessels and the cruising industry as well as coastal installation— you name it. With optimized software and blade design. AIR Silent X consistently delivers energy where it matters. The AIR Silent X’s heavy-duty design can withstand most high-wind environments. The AIR Silent X is an ideal turbine for hybrid combinations with solar PV. AIR Silent X is built and backed by the worldwide leader in small wind.
- Quiet Operation
- Silent X Carbon Fiber Multicolor Blade and Hub
- Up Tower Controls
- Integrates Easily With PV
- Corrosion resistant aircraft quality paint
- Industry Leading 3 year limited warranty-standard w/ up to 5 year optional
DESCRIPTION
AIR Silent X is the premier micro-wind turbine for marine-based applications. It operates efficiently across a wide range of wind speeds, providing energy for marine sailing vessels and the cruising industry as well as remote coastal applications.. The AIR Silent X provides maximum energy harvest from the wind while operating with minimum vibration and very low noise. With its newly re-engineered, high efficiency blade design and their distinctive Blue-White-Gray color provides you with an sophisticated yet efficient solution. The AIR Silent X is ideal for pairing with solar to offset seasonal variations, while delivering more consistent energy. When you need a wind turbine for marine environments or in Off-Grid marine-based applications with moderate to high wind conditions, look no further than the AIR SILENT X.
Data Sheet
Value | Specification |
---|---|
Energy | Approx. 90 amp – hr. per day at 5.5 m/x (12 mph avg) |
Swept Area | 1.07 m2 (11.5 ft2) |
Rotor Diameter | 1.17 m (46 in) |
Weight | 5.9 kg (13 lb) |
Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
Startup Wind Speed | 3.59 m/s (7 mph) |
Voltage | 12, 24, and 48 VDC |
Turbine Controller | Microprocessor-based smart controller |
Body | Cast aluminum, corrosion-resistant, white quality paint |
Blades | (3) Hand laminated, carbon fiber (with low sound emissions) – Multicolored w/precision fit hub design |
Alternator | Permanent magnet brushless |
Overspeed Protection | Electronic torque control |
Survival Wind Speed | 40.2 m/s (90 mph) |
Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Turbine Specifications

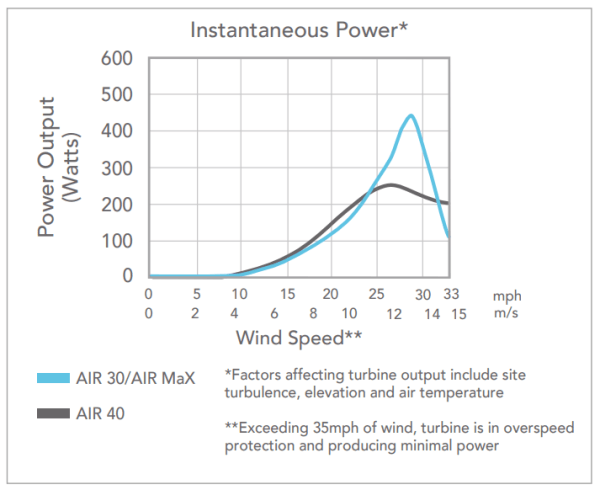

AIR® WIND POWER CURVE

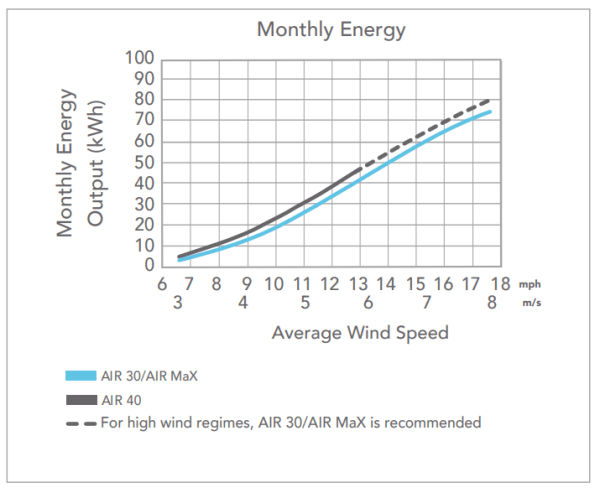

AIR® ENERGY CURVE
